Selecting the correct sealing component for industrial piping systems is critical to prevent leaks, ensure operational safety, and reduce maintenance costs. For flanged connections, the rubber steel gasket has emerged as a preferred solution due to its exceptional compressibility, resilience, and ability to withstand extreme pressures and temperatures. At Ningbo Kaxite Sealing Materials Co., Ltd, we have witnessed countless failures caused by mismatched gaskets—leading to downtime, environmental hazards, and financial losses. Understanding the nuances of material compatibility, flange surface finish, bolt torque, and pressure ratings is not optional; it is the foundation of a leak-free system.
This comprehensive guide draws on two decades of hands-on experience in the sealing industry. We will walk you through the technical parameters, performance characteristics, and selection criteria for rubber steel gaskets. Whether you are a maintenance engineer, procurement specialist, or project manager, our goal is to equip you with actionable knowledge. Our factory produces premium Rubber Steel Gaskets that meet international standards, and we are committed to transparency in specifications. By the end of this article, you will be able to confidently choose the ideal gasket for your flanged connections, avoid common pitfalls, and extend the service life of your equipment.
Choosing the correct rubber steel gasket begins with a deep dive into technical specifications. Our factory has engineered Rubber Steel Gaskets to perform under diverse conditions, but without matching parameters to your application, even the best product can fail. Below we break down the essential parameters every engineer must evaluate.
At Ningbo Kaxite Sealing Materials Co., Ltd, we insist on providing full transparency regarding our product datasheets. The following table illustrates the standard parameters for our premium Rubber Steel Gaskets. Use this as a benchmark when comparing suppliers.
| Parameter | Typical Range / Value | Selection Criteria |
| Inner Diameter (ID) | 10 mm – 2000 mm (custom available) | Match pipe ID precisely; oversized ID reduces sealing area. |
| Outer Diameter (OD) | 30 mm – 2100 mm | Must align with flange bolt circle and outer rim. |
| Thickness | 1.5 mm, 3.0 mm, 4.5 mm (custom) | Thicker gaskets compensate for flange irregularities but require higher bolt torque. |
| Rubber Material | NBR, EPDM, FKM (Viton), Silicone, Neoprene | Select based on fluid compatibility and temperature range. |
| Steel Reinforcement | Carbon steel (zinc plated), SS304, SS316 | High-corrosion environments demand stainless steel. |
| Pressure Rating | PN6, PN10, PN16, PN25, PN40, Class 150, Class 300 | Must exceed maximum system working pressure. |
| Temperature Range | -40°C to +260°C (depends on rubber compound) | FKM offers high heat; EPDM for steam and hot water. |
| Hardness (Shore A) | 70 ±5 Shore A | Softer for low bolt load; harder for high pressure. |
Beyond the table, we recommend a systematic checklist when evaluating rubber steel gaskets:
Our experience shows that ignoring any single parameter can cause catastrophic failure. For instance, using an EPDM rubber steel gasket in an oil pipeline results in swelling and extrusion. Conversely, NBR rubber steel gasket in hot water service above 100°C hardens and cracks. Therefore, always correlate the parameter with real-world operating conditions. At Ningbo Kaxite Sealing Materials Co., Ltd, we provide free application engineering support to help you match these parameters perfectly.
Even the most advanced Rubber Steel Gaskets will fail if the flange surface finish is unsuitable or bolt torque is miscalculated. In our 20 years of manufacturing sealing solutions, we have seen that over 60% of field leaks originate from improper installation practices, not gasket defects. This section explains the science behind surface finish and torque, and how our factory designs gaskets to accommodate real-world flange conditions.
Flange Surface Finish: The roughness or smoothness of the flange face directly affects the gasket’s ability to create a seal. According to ASME B16.5, a serrated finish with 125-250 microinches Ra is ideal for rubber steel gaskets. Why? A too-smooth flange (below 63 Ra) does not provide enough grip, allowing the rubber to creep under pressure. A too-rough flange (above 500 Ra) acts like sandpaper, cutting into the rubber layer and creating leak paths. Our factory recommends the following guidelines:
We have developed proprietary rubber compounds that adapt to minor flange imperfections. However, for extreme conditions, our Rubber Steel Gaskets with a thicker elastomer layer (up to 5 mm) provide additional conformability. Remember: a gasket cannot compensate for a severely warped or pitted flange.
Bolt Torque and Gasket Stress: Applying correct bolt torque is the single most important step in achieving a leak-free joint. Under-torquing results in insufficient gasket compression, while over-torquing can crush the rubber layer or even crack the flange. Our factory uses the following formula for target bolt stress:
Minimum required gasket stress (y) + operating stress (m x pressure) = target assembly stress
For rubber steel gaskets, typical minimum seating stress ranges from 10 MPa to 20 MPa, and operating stress factor (m) is around 2 to 3. We provide detailed torque charts for each gasket size. Here are critical points to follow:
Our factory has conducted over 10,000 torque tests on Rubber Steel Gaskets to establish safe limits. For a standard Class 150 flange with a 3mm thick rubber steel gasket, recommended torque for M20 bolts is 180-220 Nm. We urge all customers to request our full torque specification sheets. Furthermore, we offer on-site training for your maintenance teams because proper installation doubles gasket lifespan. At Ningbo Kaxite Sealing Materials Co., Ltd, we don’t just sell products; we deliver sealing reliability through education and support.
Media compatibility and temperature extremes are the two most critical factors that determine the service life of Rubber Steel Gaskets. A mismatch leads to chemical attack, swelling, hardening, or thermal degradation. Drawing from our extensive lab data at Ningbo Kaxite Sealing Materials Co., Ltd, this section provides a practical guide to selecting the right rubber compound for your specific fluid and temperature profile.
Rubber Material Selection Matrix: Below we list common industrial media and the recommended rubber types for rubber steel gaskets. Our factory produces all these variants with precision-engineered steel reinforcement.
| Media Type | Recommended Rubber | Avoid This Rubber | Temperature Limit (°C) |
| Mineral oils, diesel, gasoline | NBR (Nitrile) | EPDM, Silicone | -30 to +120 |
| Hot water, steam, brake fluid | EPDM | NBR, FKM (limited steam) | -40 to +150 (steam intermittent to 180) |
| Acids, solvents, high-temperature oil | FKM (Viton) | NBR, Neoprene | -20 to +260 |
| Food, beverage, pharmaceutical | Silicone (FDA grade) | Standard NBR/EPDM | -60 to +230 |
| Refrigerants, ammonia, weathering | Neoprene (CR) | Silicone (poor tear strength) | -35 to +120 |
Temperature-Specific Considerations: For applications that experience cyclic temperatures (e.g., heat exchangers, steam lines), the rubber steel gasket must accommodate thermal expansion differences between the steel ring and rubber layer. Our factory uses a specialized bonding agent that maintains adhesion even after 500 thermal cycles from -20°C to 150°C. Key temperature-related rules:
Chemical Compatibility Testing: We strongly advise immersion testing before full deployment. Our laboratory at Ningbo Kaxite Sealing Materials Co., Ltd offers compatibility testing per ASTM D471. For aggressive chemicals like sulfuric acid (98%) at high temperature, only FKM rubber steel gaskets with SS316 reinforcement survive long-term. Never guess compatibility—request our chemical resistance charts. Also, consider that some media (e.g., ethylene oxide, hot amine solutions) attack all standard rubbers, requiring PTFE envelopes or specialized elastomers. In such cases, our factory can produce custom rubber steel gaskets with Kalrez or other perfluoroelastomers. Ultimately, matching media and temperature is not just about avoiding immediate failure; it’s about maintaining sealability over years of service.
In the world of industrial sealing, compliance with international standards is non-negotiable. When you select a supplier for Rubber Steel Gaskets, you must verify certifications that guarantee quality, traceability, and performance. At Ningbo Kaxite Sealing Materials Co., Ltd, we have invested heavily in obtaining globally recognized approvals. This section outlines the key standards you should demand and why they matter for your flanged connections.
Core Standards for Rubber Steel Gaskets: The following certifications ensure that the gaskets you receive are manufactured under strict quality controls and are fit for purpose.
Why are these standards important? Without certification, you risk using gaskets that have incorrect dimensions, substandard rubber curing, or steel that corrodes prematurely. For example, our factory’s Rubber Steel Gaskets are laser-marked with traceability codes that include batch number, rubber type, and pressure class. This traceability allowed one of our clients in a nuclear power plant to quickly identify a misordered gasket before installation, preventing a potential shutdown.
Material Test Reports (MTR) and Third-Party Inspections: Always request MTRs for the steel component, including chemical composition and mechanical properties. For the rubber, ask for a certificate of analysis showing hardness, tensile strength, elongation, and compression set. Our factory provides these documents with every shipment. Additionally, independent third-party inspections (e.g., SGS, TÜV, Bureau Veritas) can be arranged. We have a 100% pass rate for hydrostatic and pneumatic tests on our Rubber Steel Gaskets. Finally, check if the supplier maintains a documented quality manual and performs in-house testing such as:
At Ningbo Kaxite Sealing Materials Co., Ltd, we not only meet these standards but exceed them by offering a 5-year shelf-life guarantee for our Rubber Steel Gaskets when stored properly. Don’t settle for uncertified products. Insist on full documentation, because in the end, a gasket’s price is insignificant compared to the cost of a leak-induced accident.
Selecting the right rubber steel gasket for flanged connections is a multi-faceted decision that requires evaluating parameters like dimensions, rubber material, flange finish, bolt torque, media compatibility, and supplier certifications. Throughout this guide, we have shared insights from our two decades of manufacturing excellence at Ningbo Kaxite Sealing Materials Co., Ltd. Our factory has produced over 5 million Rubber Steel Gaskets for industries ranging from oil and gas to food processing. We have learned that success lies in collaboration—understanding your specific operating conditions and providing tailored solutions.
Ready to secure your piping systems with premium Rubber Steel Gaskets? Contact Ningbo Kaxite Sealing Materials Co., Ltd today for a free consultation. Our engineers will help you select the exact gasket based on your flange standard, pressure, temperature, and media. Request a sample kit, product catalog, or a customized torque chart. We offer fast turnaround, competitive pricing, and global shipping. Visit our website or email our sales team directly. Don't let a wrong gasket choice compromise your operation. Choose reliability. Choose Ningbo Kaxite Sealing Materials Co., Ltd.
The most common failure cause is incorrect bolt torque, either under-torquing or over-torquing. Under-torquing leads to insufficient gasket compression, allowing leaks under pressure. Over-torquing crushes the rubber layer or extrudes it beyond the flange, causing blowout. Second common cause is mismatched rubber material with the fluid media, leading to chemical swelling or hardening. Our factory at Ningbo Kaxite Sealing Materials Co., Ltd always provides torque specification sheets and compatibility guides to prevent these failures.
Gasket thickness should be selected based on flange surface condition and pressure rating. For smooth, parallel flanges with low pressure (PN10 or below), 1.5 mm thickness is sufficient. For warped flanges or high-pressure applications (PN40 or Class 300), use 3.0 mm or 4.5 mm thickness to improve conformability. However, thicker gaskets require higher bolt torque and have more creep relaxation. Our factory recommends never exceeding 4.5 mm for rubber steel gaskets because thicker layers reduce internal pressure resistance. For most ASME and EN flanges, 3.0 mm offers the best balance. Always consult your flange standard and our product datasheet.
Reusing rubber steel gaskets is generally not recommended because the rubber layer takes a compression set after initial bolt tightening, reducing its ability to seal again. However, if the gasket shows no signs of cracking, permanent indentation, or chemical attack, and the application is non-critical with low pressure and temperature, some engineers perform a visual inspection and pressure test. For safety-critical systems (steam, toxic fluids, high pressure), always install a new gasket. Our factory produces cost-effective Rubber Steel Gaskets, making replacement the safest and most reliable practice. Never reuse a gasket that has been through thermal cycling or exposed to aggressive media.

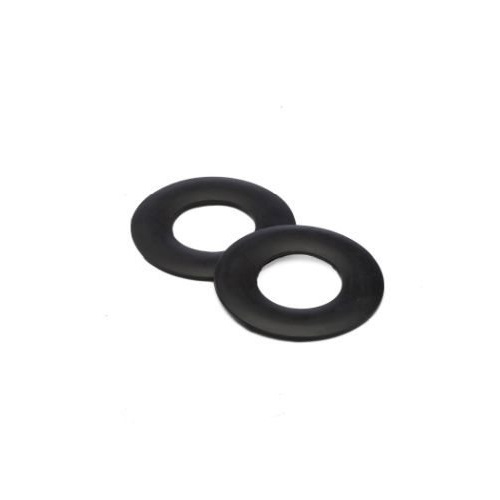

A rubber steel gasket consists of an elastomer (rubber) layer bonded to one or both sides of a perforated or solid steel core, providing excellent mechanical strength and gas-tight sealing. Standard non-asbestos gaskets are compressed fiber sheets without metal reinforcement. The key differences: rubber steel gaskets offer higher blowout resistance, better recovery after compression, and superior sealing for low bolt load applications. They also conform to flange irregularities better than fiber gaskets. However, rubber steel gaskets have lower temperature limits (max 260°C with FKM) compared to some fiber gaskets (up to 450°C). At Ningbo Kaxite Sealing Materials Co., Ltd, we recommend rubber steel gaskets for oil, water, air, and mild chemical services where elasticity and leak tightness are priorities.
Proper storage is critical to prevent premature aging of the rubber component. Store rubber steel gaskets in a cool, dry, dark environment between 5°C and 25°C. Avoid direct sunlight, ozone sources (electric motors, welding equipment), and humidity above 70%. Keep gaskets in their original plastic bags or wrap them in opaque polyethylene. Do not stack heavy objects on top of gaskets to avoid permanent deformation. Our factory recommends a maximum shelf life of 5 years for NBR and EPDM rubber steel gaskets, and 3 years for FKM and silicone. Always perform a visual inspection before installation—check for hardness, cracks, or stickiness. Following these guidelines ensures that your Rubber Steel Gaskets perform as designed.
